(50-500) ABA Die Head

Name: (50-500) ABA Die Head
Brand: WENZHOU BOJING PLASTIC MOULD CO., LTD.

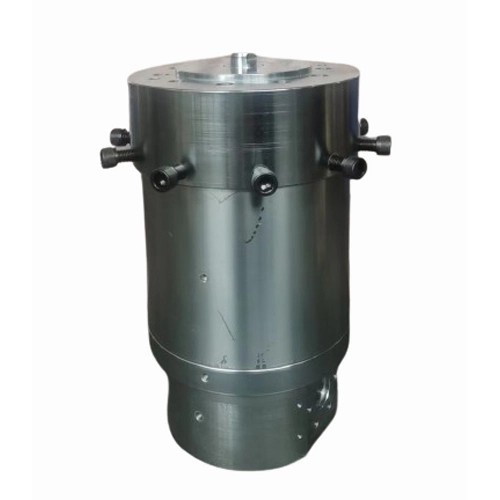

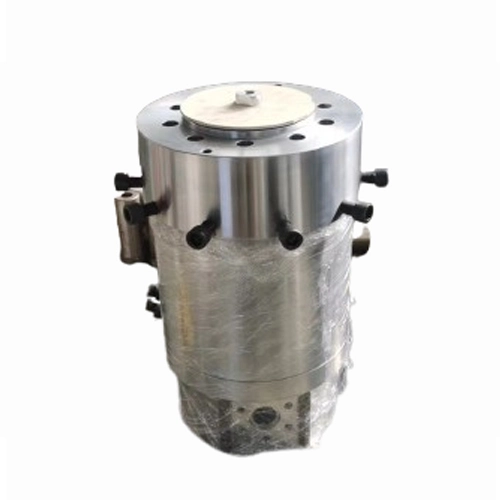

This is one of the HDPE die heads produced by our company, which is suitable for ABA pseudo three layer, and this type of die head can achieve 50-500MM die core and cover interchange.

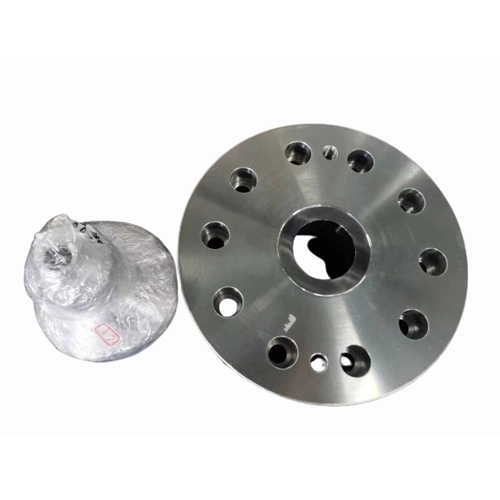

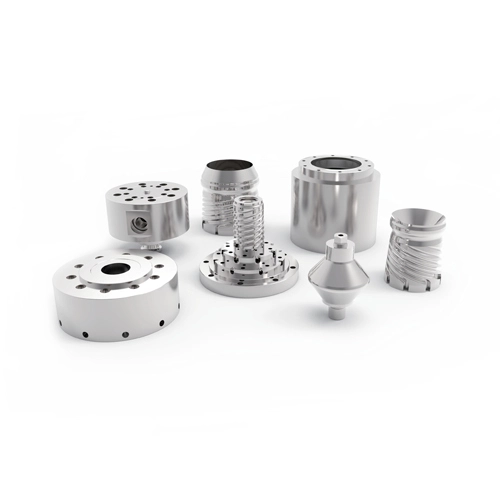

The die head of the film blowing machine is composed of a die body (die core, die cylinder, die cover) and a heater (heating ring).

Specification of (50-500) ABA Die Head

Art.No：	Extruder ABA Die Head Head
Applicable raw materials:	PE
Species：	PE FILM BLOWING MACHINE
BRAND:	BOJING
USE:	FILM BLOWN
SCREW DIAMETER:	80(MM)
MOTOR POWER:	45(KW)
WEIGHT:	100-300(KG)
Max width:	4000(MM)
L/D:	30:1
capacity:	200(kg/h)
die diameter:	250(mm)-450(mm)

Features of (50-500) ABA Die Head

The die head is made of 42CRMO material, and is processed by precision machining and oxidation treatment, with high hardness, wear resistance and corrosion resistance.
The central feed screw blister head is used, the flow channel is smooth, it is not easy to produce weld marks, the die gap is adjustable, and the discharge is uniform.
The head rotation device can be configured according to the needs of users to promote the smooth flow rate of materials and improve the uniformity of film thickness.
